Reliable processes, good quality, solid profit: LiSEC solutions provide flat glass processors around the world with security and drive in a challenging environment. For the last 60 year s, we have been working har d to enable you to sustainably boost the efficiency, the syste m availability and the quality output of your flat gla ss production process. Thanks to forward-looking thinking, continuously striving to find the best solution and a great deal of personal commitment from our employees, we have grown from a one-man company to a tech nology leader.

Our adva nced solutions generate a great cost-to-b enefit ratio throughout the entire lifecycle of your machines and systems. Customers around the world can benefit from this: be they experienced manufacture rs or newcomers to the industry; from family businesses to industrial glass processors. Three main factors ar e essential for long-term success:

1. Turn Key Solutions Everything from a single source including soware. Customers b enefit from the only company in the flat glass machine industry that can comprehensively plan and develop large projects - also thanks to the wid est pr oduct range in the industry. 2. Excellent Service Investment security and the highest availability and productivity enable the lar ge , global LiSEC service network. A contact person familiar with the local la nguage and customs is available close to you. 3. Performance through soware integration Integration of the production management soware and the machinery control (digitalization/Industry 4.0) allows top operation and optimization of all integrated machines or whole glass factorie s. The benefits: Over 60 years of partnership, pioneering spirit and stability Investment security due to the size of our company Leading te chnology with a high resale value Great cost-to-benefit ratio throughout the e ntir e system lifecycle

Facts and figure

s:

1961 founding yea r 1 strong b rand 1,100 employees Over 20 sites 213 million Euros turnover (2021) Over 90 % expor t rate 7 % of turnover for R&D More than 330 pate nts

Watch on Youtube

Tab

l

e of Contents

L

ines

Split

Fin

p. 10

The new vertical processing concept: Modular

and fully integrated at

the same time

Split

Fin

p. 12

SplitFin in combination with

individual logistics solutions

S

tand-A

lone Machines

OVERVIEW OF THE PROC

E

SSI

NG OPTIO

NS

p. 16

Edge Seamin g

K

S

R & KSV

p. 18

Compact Vertical Glass Edge Seaming

Machine for Rectangles and Shapes

Machiner

y

for

Flat Glass

Pr

ocessing

Edge Processing

KSD-A p. 20

Vertical edge seaming and grinding

machine with LiTEC slider technology

EPS p. 24

Vertical fully automatic grinding and polishing

machine with fast double heads

Inside Processing

M

R

X-

B

p. 26

Vertical CNC milling and drilling centre

with water jet technology

Water Treatment

W

R

A

-

B15

0 p. 30

Water Treatment System

Washing

OVERVIEW WASHING MASCHINES p. 33

T

C

L

p. 34

Optimised for integration in LiSEC lines

V

H

W-

F

p. 35

Automatic washing and drying plant for flat glass

Tab

l

e of Contents

Se

rvi

ce

S

er

v

ices p. 36

We over you worldwide service and the

fastest possible supply of spare parts

Compet

e

nc

e Ce

nt

e

r

G

L

A

S

T

EC

H

p. 40

Competence Center for research, product

ion and

training in the field of flat glass

processing

Machiner

y

for

Flat Glass

Pr

ocessing

LINES

We match the LiSEC lines individually to suit your production requirements. You can combine innovative systems from the area s of glass processing, glass cutting, tempering and logistics to form a complete line system. Our employees are a lways pleased to advise you, and to work with you to configure line solutions designed to suit your precise need s. In order to use the full efficiency of your production, cross-line sowa re solutions are available.

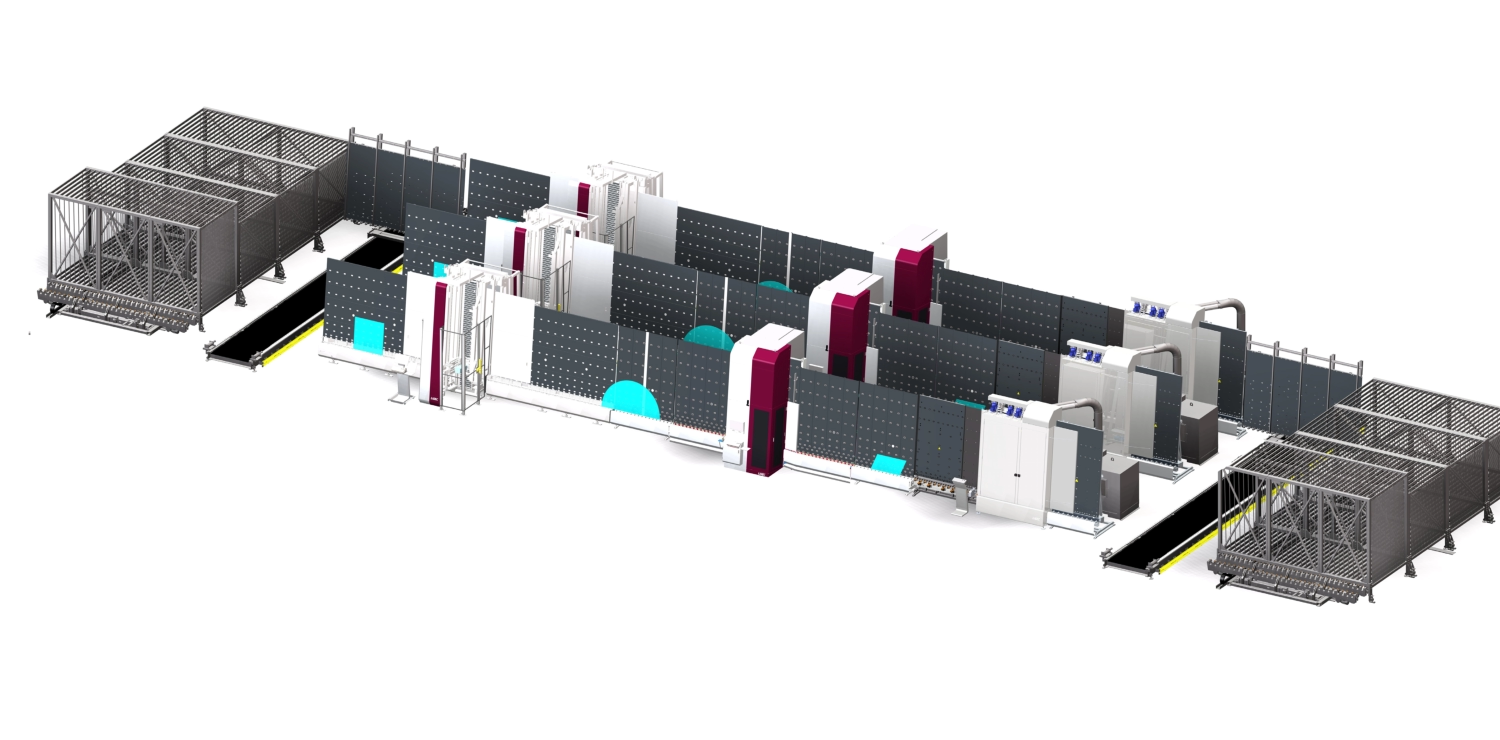

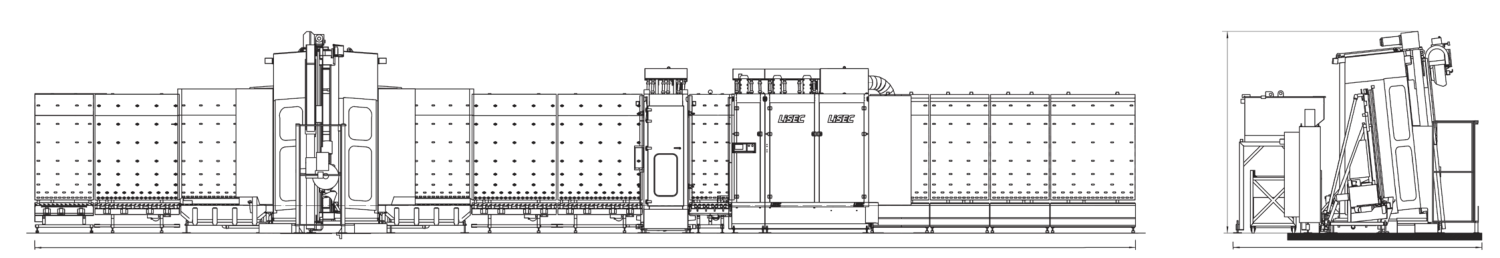

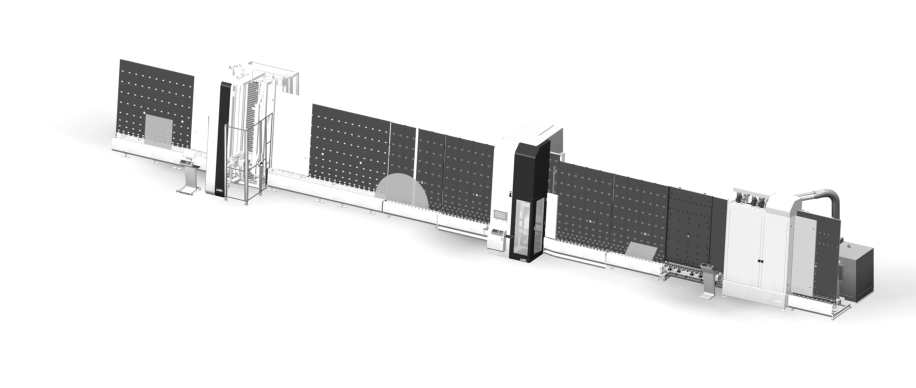

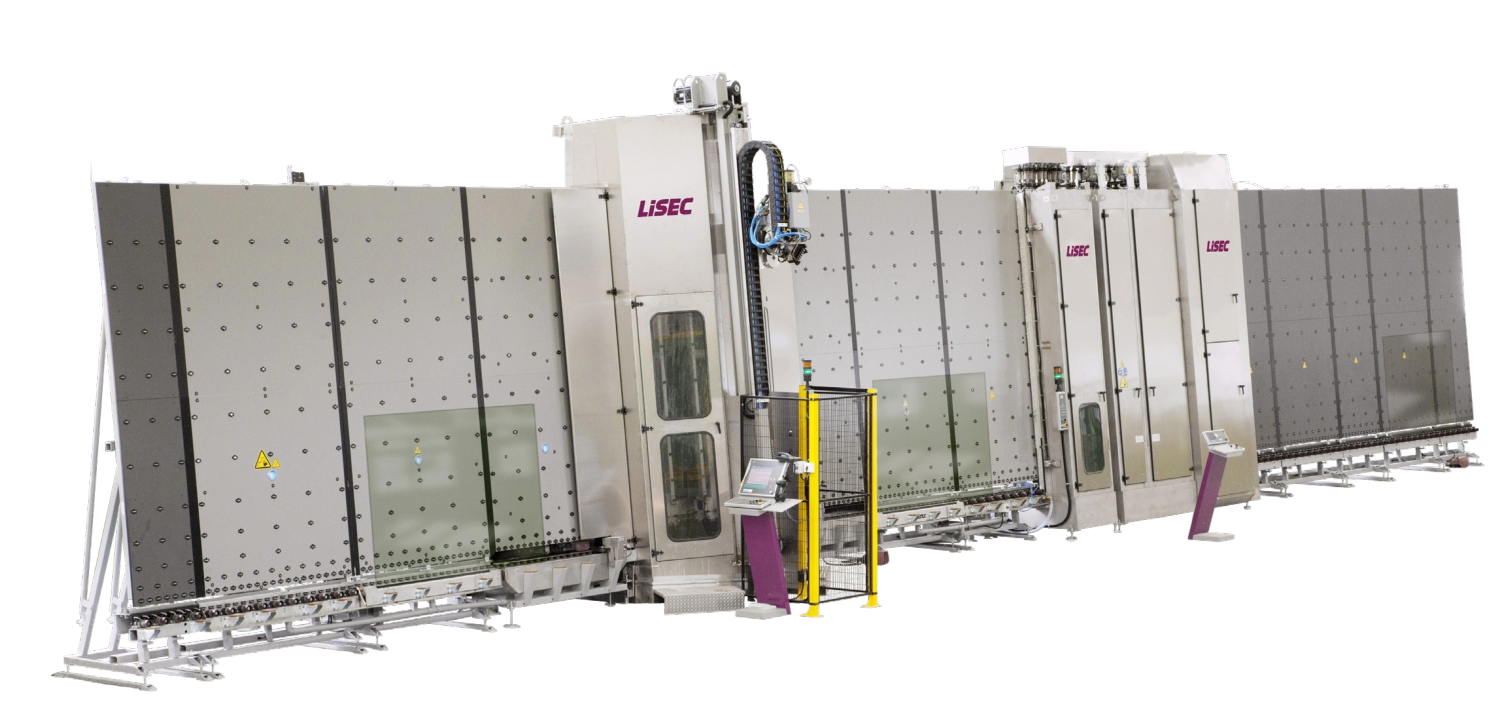

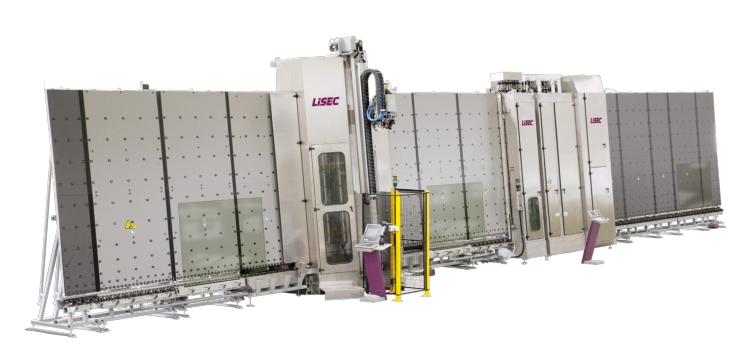

SplitFin

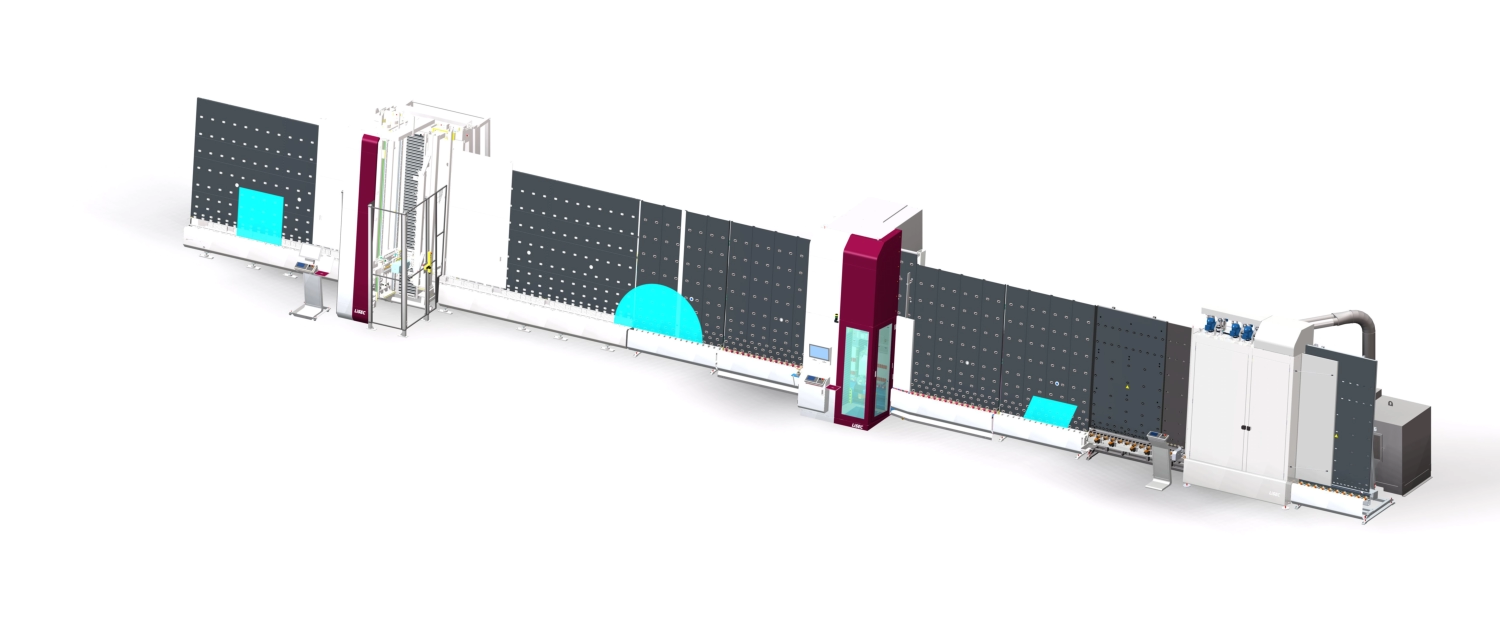

SplitFin aims to optimise your entire production operation, using the specific advantages and highlights of the various standalone machines. In contrast to all-in-one centres, and to stand- alone solutions, you can use this LiSEC proce ssing line for high output levels on the entire line at once, and if requested, simply operate and use the standalone machines. Of course, you could simply start with one machine, then extend your line at a la te r date to include other systems.

The new vertical processing concept: Modular and fully integra ted at the same time

LiSEC SplitFin co

m

ponents:

The core components of the SplitFin line are the following standalone machines: EPS vertical fully automatic edge grinding machine, optionally with one or two grinding heads a nd, upon request, with automatic tool changing. Integrated compone nt but located in a second machining turret: the MRX-B drilling and milling centre with integrated tool-changer and patented LiSEC wate r jetting te chnology. These processing devices are complemented by a TCL or a VHW glass washing machine. On re que st, they can be retrofitted with a selection of vertical semi-automatic or fully-automatic shuttle and sorting systems. And d on’t forge t the integration, consistency, and compatibility of the soware. Naturally, the system may be integrat ed with external ERP systems or supplied with dra wing data. You can expect current visualisation and evaluation systems with all of the modern operating systems.

cadcam

autofab

processclind

Software

Highlights

Compared to combination machines, this line is signifi- cantly more effective and fa ster, with all components and parts of the system being in operation at all times. Compared to individua l devices, you use a continuous material flow with the additional option of a vertica l overtaking lane (VLO = vertical li over).

Technical Data

Glass thickness

4 - 20 mm

Maximum glass heigh t

2,000 mm / 2,500 mm / 3,000 mm / 3,300 mm

Maximum glass lengt h

3,300 mm / 4,000 mm / 5,000 mm / 6,000 mm / 8,000 mm

Minimum size 600 x 180 mm VLO (second vertical transport lane) Yes / No Water jet Yes / No Washing machine TCL / VHW

Watch on Youtube

Highlights

Individually configura ble and usable according to customer requirements Individual machines a nd transport sections can be extende d or added at any time Fast cycle times through splitting the necessary processing steps Easy production planning a nd continuous material flow on the line

SplitFin

LiSEC supports you with tailor-made solutions to achieve a high output and re duce the number of operating personnel. The performance of the individual machines has just as much impact as the possibility to combine those processing machines with semi or fully automatic shuttle and sorting systems. Customized logistics solutions reduce the effort for glass manipulation and manual sorting, and consequently the number of necessary opera ting personne l. It is of course possible to implement these solutions gradually, depending on the customer‘s requireme nts.

SplitFin in combination wit h individual logistics solutions

STAND-

ALONE

MACHINES

With LiSEC standalone machines, you can achie ve seamless production. We not only support you in the insulation glass production business with our LiSEC insulation glass machines. We can also equip you with machines for glass cutting or glass processing as well as with logistics systems and tempering furnaces.

Overview of the processing options

The processing of edges is an important issue for every glass manufa cturer. The many and varied requirements on edge quality and the manufacture of internal, ed ge and border cutawa ys necessitate the use of a dive rse range of processes and production machines.

KSR/KSV KSD EPS MRX-B

Edge processing Seamed ed ge (KGS)

 

Rough ed ge (KMG) -

 

Bevelled edge (KGN) -

 

Polished ed ge (KPO) -

 

Internal processing Bores---



Deep-countersinking - - -



Milling---



Grinding-- -



Polishing-- -



Water jet---

○

Machine construction Special shapes



Fully automatic

 Automatic tool changing - -

○



2nd Spindle -



○



Water cushion - -

 

 Standard, ○ Optional, - Not Availab le

Options

Sh apes according to LiSEC shape catalogue Corner seaming and front- sided flat arrising of rectangules and shapes Combination of KSR with KSV

lineserver

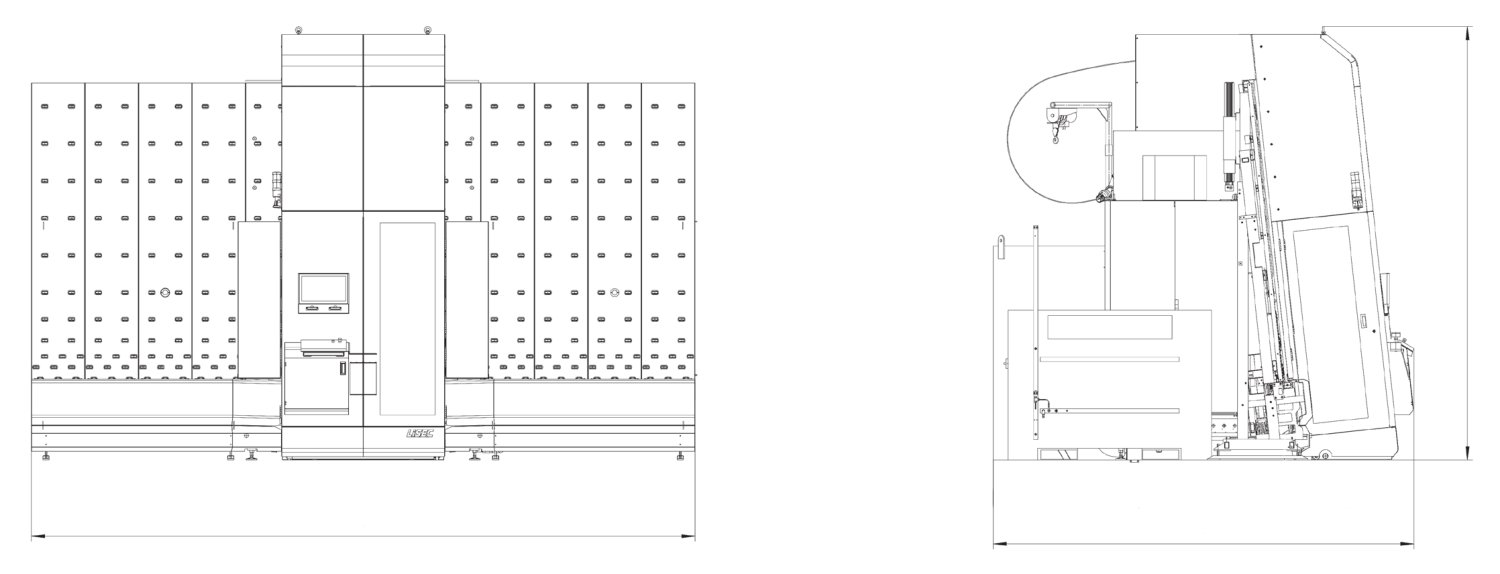

L B

KSR

KSV VHW

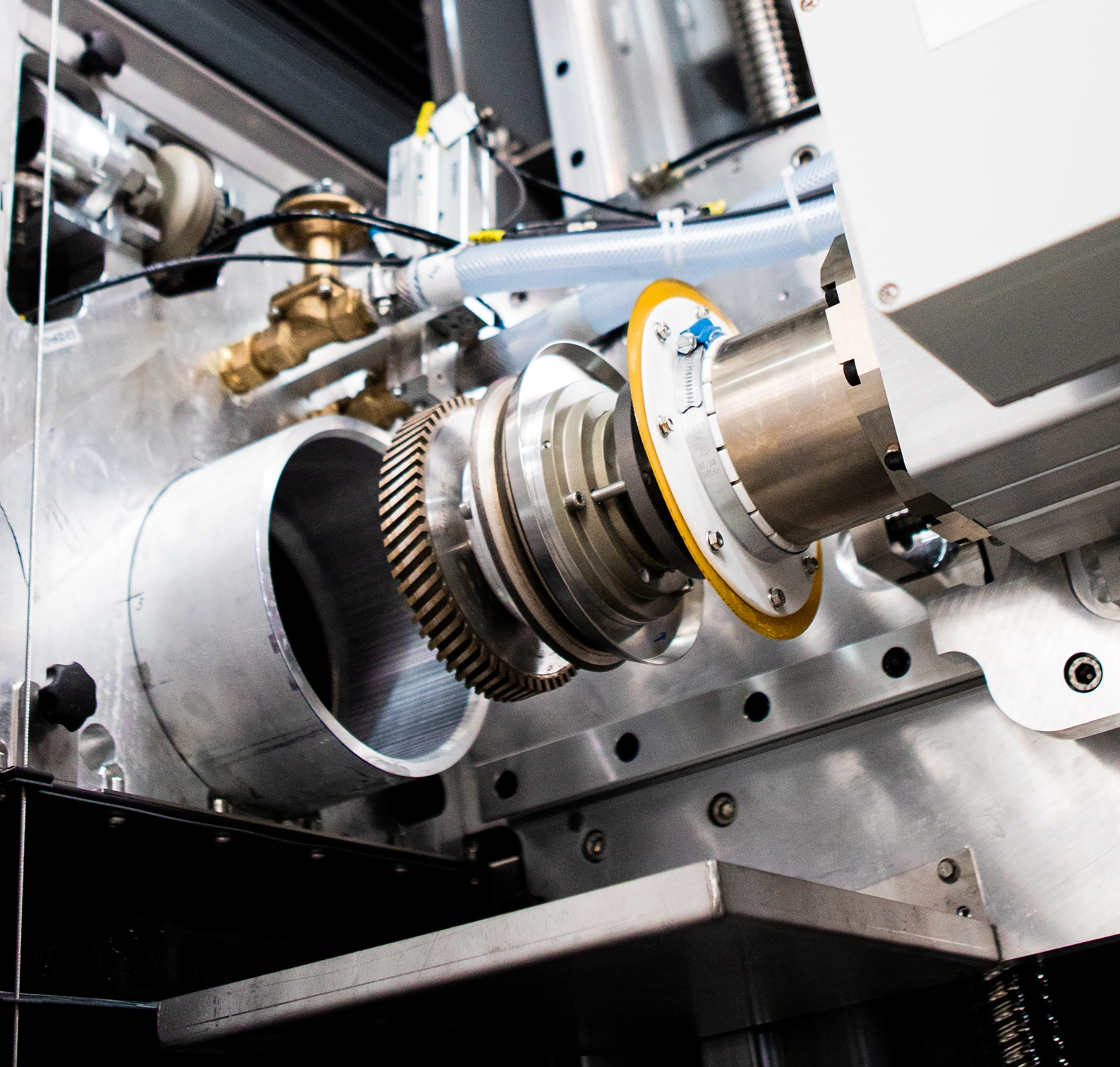

Highlights Compact dimension - only one grinding head Perfect seaming in extremely short cycle times 35% shorter cycle times with combined KSR and KSV Complete machine body made of stainless steel Can easily be connected to vertical washing machines and production lines Best choice for high quality tempered glass

L (mm) B (mm) H (mm)

Power consumption (kW)

Operating air pressure (bar)

Air consump- tion (l/min)

Operating wa- ter pressure (bar)

Water consump- tion (l/min) *

KSR-21 7,350 4,640 3,810 19.3 6 600 3 0.6 KSR-25 7,350 4,640 4,206 19.3 6 600 3 0.6 KSR-27 7,350 4,640 4,405 19.3 6 600 3 0.6 KSR-30 7,350 4,640 4,703 19.3 6 600 3 0.6 KSR-33 7,350 4,640 5,005 19.3 6 600 3 0.6 * Water consumption if used with a wa ter treatment system

Watch on Youtube

KSR & KSV

Vertical compact grinding machine for the seaming of glass sheets on all four side s in a fully automatic cycle. The glass edges are ground by wet-diamond be lts which simultane ously process the front and rear side of a glass edge. The grinding h ead moves on a vertical guide unit and can also rotate 360 d egrees, allowing it to reach all four sides of a glass sheet. This grinding process achieves a perfect and gentle se aming of glass edges with the shortest cycle times and minimizes the quantity of require d abrasive tools. The grinding belts automatically adjust to the r esprective sheet size and thickness. The grinding width is adjustable from 0.5 mm to 2 mm. The compact dimension of the machine results from only one grinding head processing all sides of a rectangular or shaped glass sheet. Optional equipment for flat grinding (roughening) the glass edges as well as for grinding (shaping) the corners of the glass sh eed are available. Combining the KSR with the compact grinding machine KSV to seam the horizontal bottom edge of the glass sheet can reduce the cycle time by up to 35%. The combined KSR & KSV is perfectly suited for applications in the insulating glass industry.

Compact Vertical Glass Edge Seaming Machine for Rectangles and Shapes

Technical Data

KSR-21 KSR-25 KSR-27 KSR-30 KSR-33

Glass height

2.1 m 2.5 m 2.7 m3 m 3.3 m

Glass thickness

2.3 - 19 mm (pass-through transport up to 30 mm)

Minimal size

350 x 180 mm

Maximal size

up to 6,000 mm, longer versions available upon r equest

Transport height

520 mm

Seaming speed max.

30 m/min at 2.3 - 9.2 mm

Speed flat arrising max.

30 m/min at 2.3 - 3.7 mm 20 m/min at 3.7 - 5.6 mm

Maximum Load

150 kg/lm, 250 kg/lm at pass-through transport

Cycle time (1.000 x 1.000 mm)

KSR: 21 sec. KSR & KSV: 12 sec.

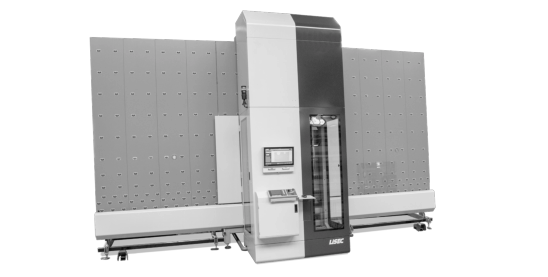

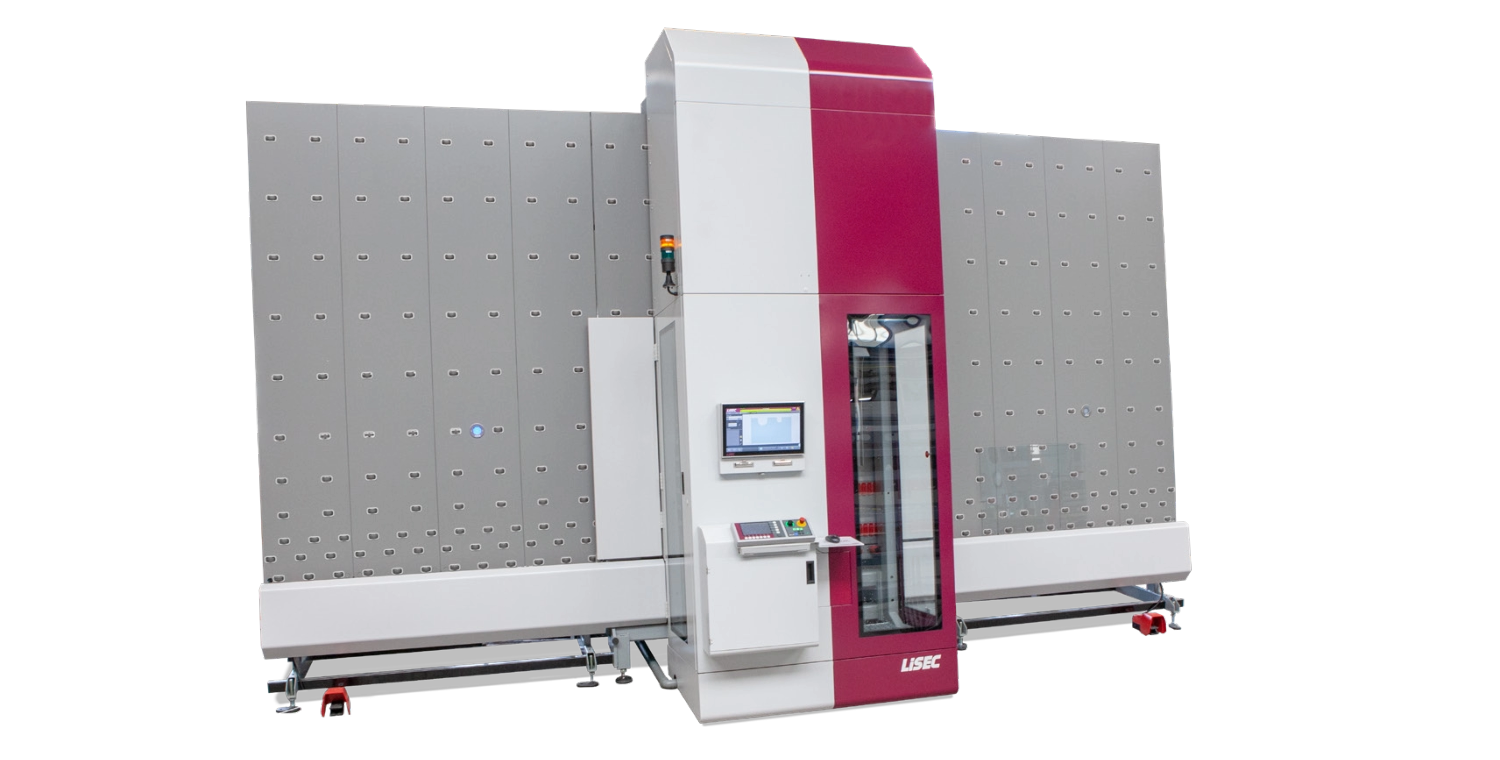

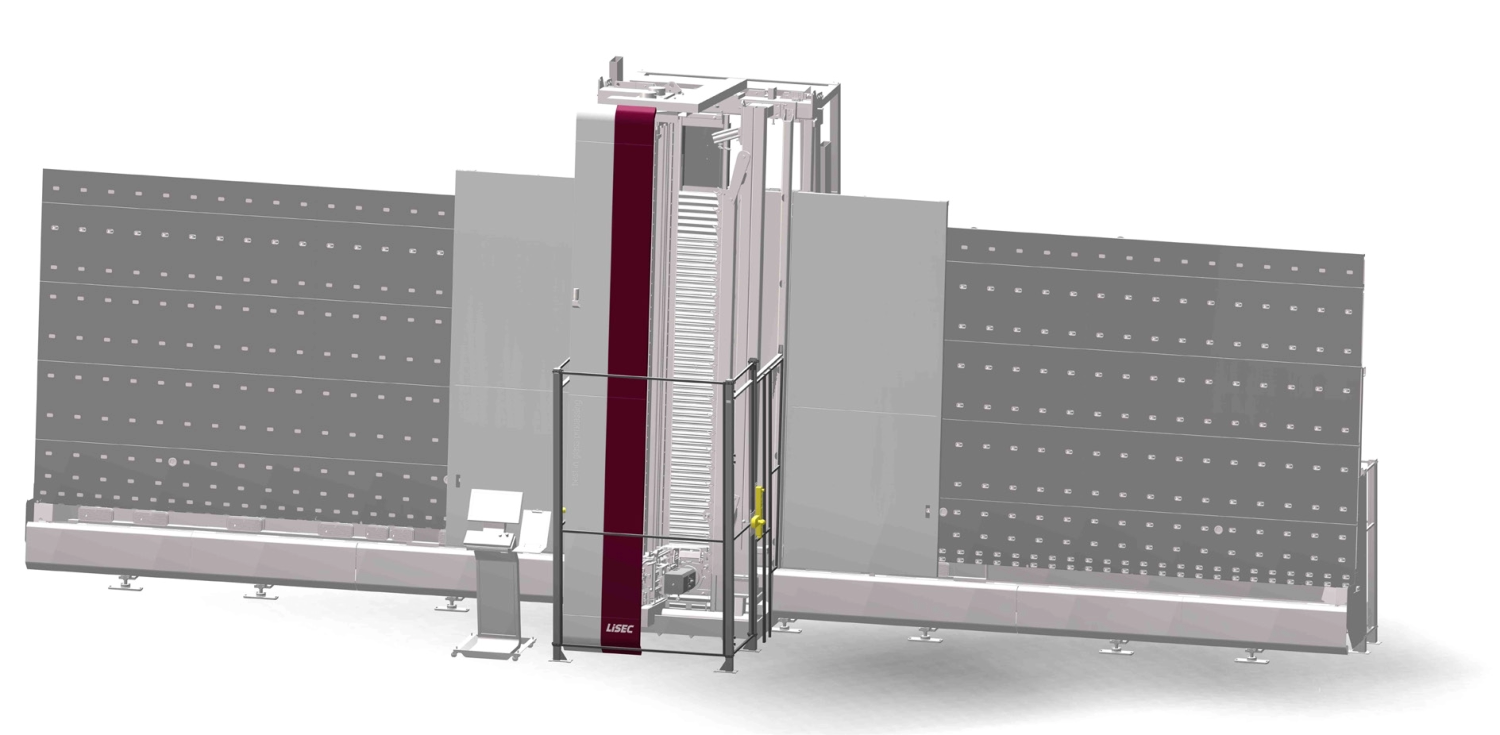

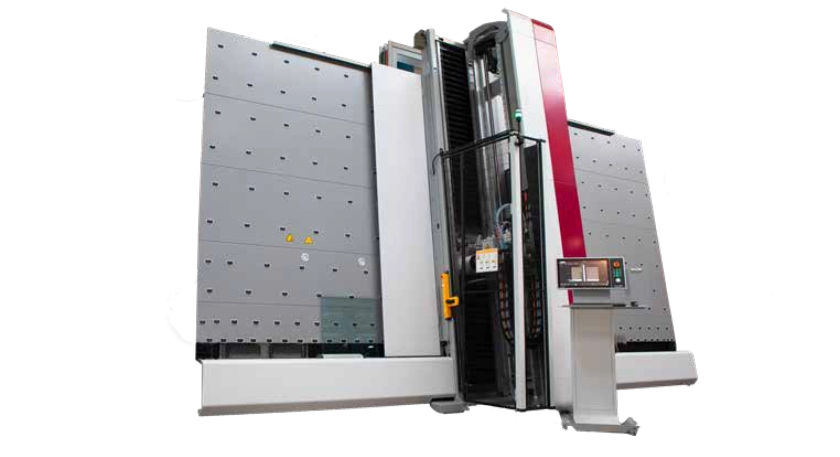

KSD - A Vertical edge seaming and grinding machine with LiTEC slider tech nology The new KSD-A from LiSEC is currently the fastest vertical seaming and grinding ma chine with peripheral wheels. The machine combines massive processing flexibility with stable and reliab ly high quality. Depending on the machine length, the KSD-A consists of several elements in a modular construction. At the heart of the sy stem is the processing tower with a high-speed X-axis for glass transport and optionally one or two processing he ads mounted on separate ver tical axes. The perfect waterproofing of the axes e nsures long-term stability and easy accessibility. The KSD-A was developed for the fastest possible cycle times and the gr eatest possible flexibility . For even faster cycle times, the system is also available as an HS version with two machining heads. The sheet is received by a high-speed axis with suction cups, which measures the position of the sh eet at all times. Aer automatic measurement of the height of the glass sheet „on the fly“, the edge is seamed or ground in an arbitrary number of cycles. The flexib le tool configura tion allows processing of different glass thicknesses without changing tools. The two grea test advantages of the system are the perfect seaming quality - independent of the quality of the cut glass - and the outstand ing processing flexibility. The newly d eveloped and patent-pending floating tool of the LiTEC slider series ensures per fect edge seaming and grinding results even with poor ly cut or faulty glass. LiTEC slider seaming and grinding tools use water pressure to feed the tool. This enab les highly ergonomic and efficient feeding of the processing tool to the glass.

Technical data

KSD-A20 KSD-A25 KSD-A30 KSD-A33

Maximum glass h eight (mm)

2,000 2,500 3,000 3,300

Maximum glass l ength

Modular

Minimum glass dimension

Seaming 350x180 mm/ grinding with material removal 700x180 mm

Glass thickness

2.3-19 mm (seaming from 4 mm glass thickness)

Number of processing heads

One processing head is stand ard, with the option of second h ead

Transport height

520 mm / other transport heigh ts on request

Tilt angle for glass transport

6°

Tools

LiTEC slider - diameter: 150 mm / holder: HS K-50

Options Second processing head for even faster cycle time s

Highlights Perfect seaming quality every time, thanks to the use of LiTEC slider technology Rapid seaming and grinding of a wide variety of glass lites sheets in one machine Maximum dynamics and spe eds of all axes Optimised for use in insulating glass lines and aer glass cutting Automatic measurement of rectangles possib le as standard. Flexible tool configuration for processing without tool change Tool holder change directly from the front side of the ma chine Tool set-up on the tool holder is possible during processing Modular extension of the glass length possible

L (mm) W (mm) H (mm)

Power consumption (kW)

Operating air pressure (bar)

Air consump- tion (l/min)

Operating wa- ter pressure (bar)

Water consump- tion (l/min) *

KSD-A20 KSD-A20HS

6,672 4,300 3,460

22 37,7

6 700 4

10 20

KSD-A25 KSD-A25HS

6,672 4,300 3,960

22 37,7

6 700 4

10 20

KSD-A30 KSD-A30HS

6,672 4,300 4,460

22 37,7

6 700 4

10 20

KSD-A33 KSD-A33HS

6,672 4,300 4,760

22 37,7

6 700 4

10 20

Options & Softwar

e

Second grinding spindle for shorter cycle times Automatic tool changer Special and slot processing

cadcam

processclind

Highlights

S hort cycle times Special shapes a nd radii are possible as standard Simple interlinking Optimised maintenance and servicing

Technical Data

EPS-B33/20 EPS-B40/25 EPS-B40/33 EPS-B50/30 EPS-B50/33 EPS-B60/33 EPS-B80/33

Maximum glass lengt h

3,300 mm 4,000 mm 4,000 mm 5,000 m m 5,000 mm 6,000 mm 8,000 mm

Maximum glass heigh t 2,000 mm 2,500 mm 3,300 mm 3,000 m m 3,300 mm 3,300 mm 3,300 mm Minimum glass dimensions 500 x 180 mm Glass thickness 3 – 20 mm (optional: 2 mm thi n glass / 25 mm thick glass) Number of grinding spindles One spindle, with option of a se cond spindle Optional tool changer 12- / 16-slots 16- / 19-slots 22- / 24-slots 19- / 22-slots 22- / 24-slots 22- / 24-slots 22- / 24-slots Transport height 520 mm / optional 720 mm Tilt angle for glass transport 6° Tools Diameter: 100 mm / holder: HSK-50

L (mm) B - EPS (mm) H (mm )

Power consump- tion(kW)

Operating air pressure (bar)

Operating water pressure (bar)

EPS-B33/20

8,600 4,300 3,400 35 6 3

EPS-B40/25

10,000 4,300 3,900 35 6 3

EPS-B40/33

10,000 4,300 4,700 35 6 3

EPS-B50/30

12,000 4,300 4,400 35 6 3

EPS-B60/33

14,000 4,300 4,700 35 6 3

EPS-B80/33

EPS

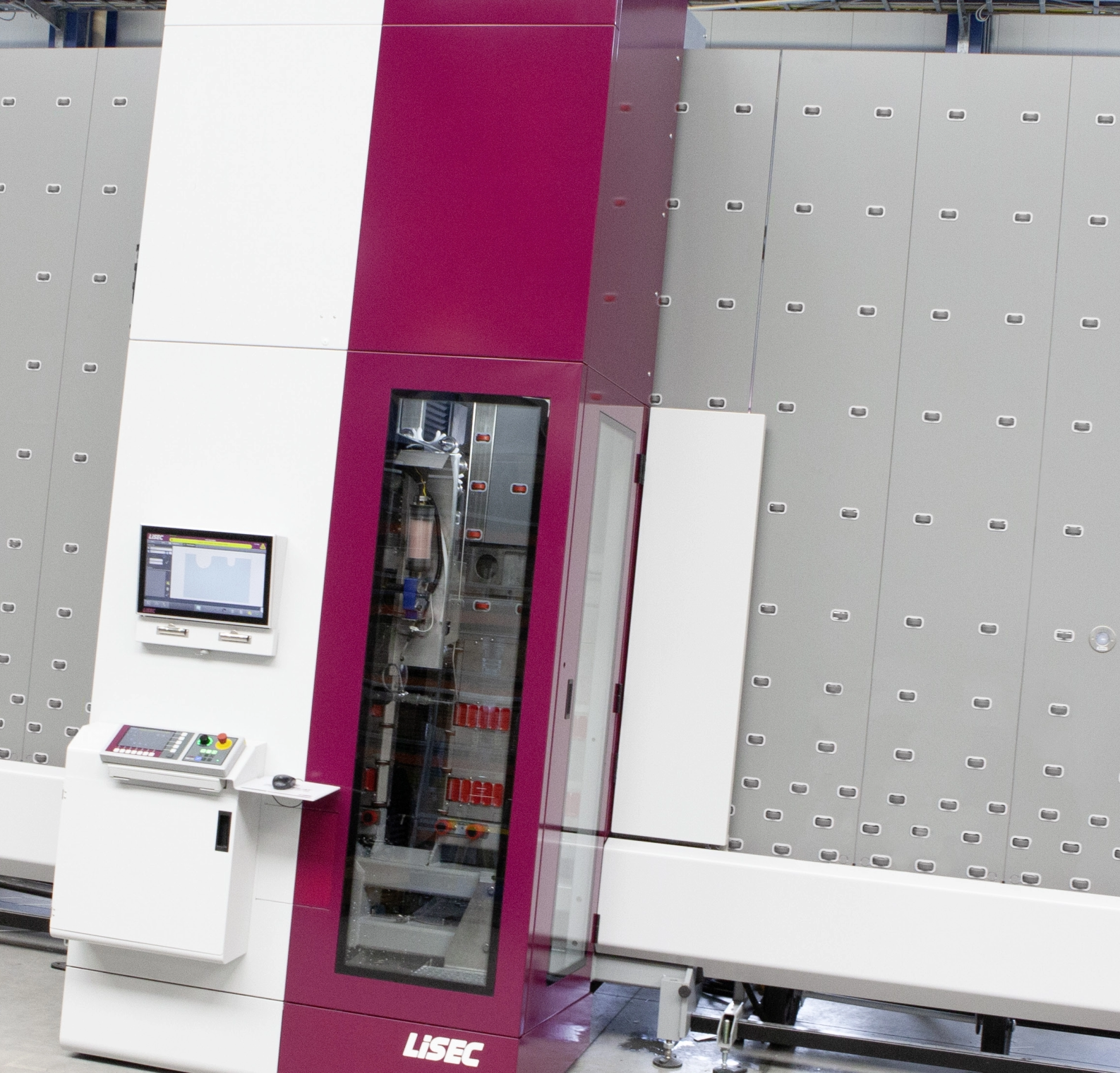

We developed the LiSEC EPS specifically for the flexible and rapid manufacture of ground and polished edges. This processing machine delivers convincingly fast cycle times. These are achieved by consistent optimisation of ope rating sequences. To satisfy particularly fast cycle time requir ements, there is the option of installing a second grinding spindle. Through the use of circumferential discs, a great variety of shapes - including rectangle s - can be processed as standard. It is possible to manufacture a polishe d edge without any tool changes, since all the tools required are located on a single tool holder. Integrating an automatic tool changer is an easy way to achieve flexible production operations. EPS is easy to link up to internal processing machines, or to washing machines. This well though t-out design makes the system readily accessible for maintenance and servicing work. Tool management is state-of-the-art a nd includes re-profiling and alignment checks of the machine as well as automatic correction of polishing wheel wear. We place particular emphasis on this machine being easy and modern to opera te .

Vertical fully automatic grinding and polishing mach ine with fast double heads

Options

Linear-8 or Roto-10 magazine VLO operation (VLO = vertical li over) Drawing program Milling centre with integrated water jet

cadcam

processclind Inte rface

Highlights

Milling, drilling and cutting in a single operation Integrated wa ter jet Extremely fast cycle times Two types of tool changers availa ble Flexible cha nge of products Simple operation without CAD knowledge

* Water consumption if used with a wa ter treatment system

Technische Daten

MRX-B20 MRX-B25 MRX-B30 MRX-B33 MRX-B20 WJ MRX-B25 WJ MRX-B30 WJ MRX-B33 WJ

Glass height

2,000 mm 2,500 mm 3,000 mm 3.300 mm 2,000 mm 2,500 mm 3,000 mm 3,300 mm

Max. processing height of tools

2,000 mm 2,500 mm 2,500 mm 2,500 mm 2,000 mm 2,500 mm 2,500 mm 2,500 mm Integrated water jet No No No No Yes Ye s Yes Yes

Max. processing height of water jet

----1,600 mm 2,100 mm 2,100 mm 2,100 mm

Tool magazine

Linear-8 or Roto-10

Roto-10 R oto-10 Roto-10 Roto-10

Minimum size 600 x 160 mm (drilling / cutting), 650 x 160 mm (milling / grinding) Glass thickness 4 - 20 mm

Maximum glass length

Depending on transport line

Transport height 720 mm Angle of inclination 6° Maximum load 100 kg / lfm

Spindle power (rating)

2 x 5,5 kW

Spindle speed

0 – 12,000 rpm

L (mm) B (mm) H (mm)

Power consump- tion (kW)

Operating air pressure (bar)

Operating water pressure (bar)

MRX-B20

6,200 3,000 3,500 32 6 3

MRX-B25

6,200 3,000 4,000 32 6 3

MRX-B30

6,200 3,000 4,500 32 6 3

MRX-B33

6,200 3,000 4,800 32 6 3

MRX-B20 WJ

6,200 4,200 3,500 70 6 3

MRX-B25 WJ

6,200 4,200 4,000 70 6 3

MRX-B30 WJ

6,200 4,200 4,500 70 6 3

MRX-B33 WJ

6,200 4,200 4,800 70 6 3

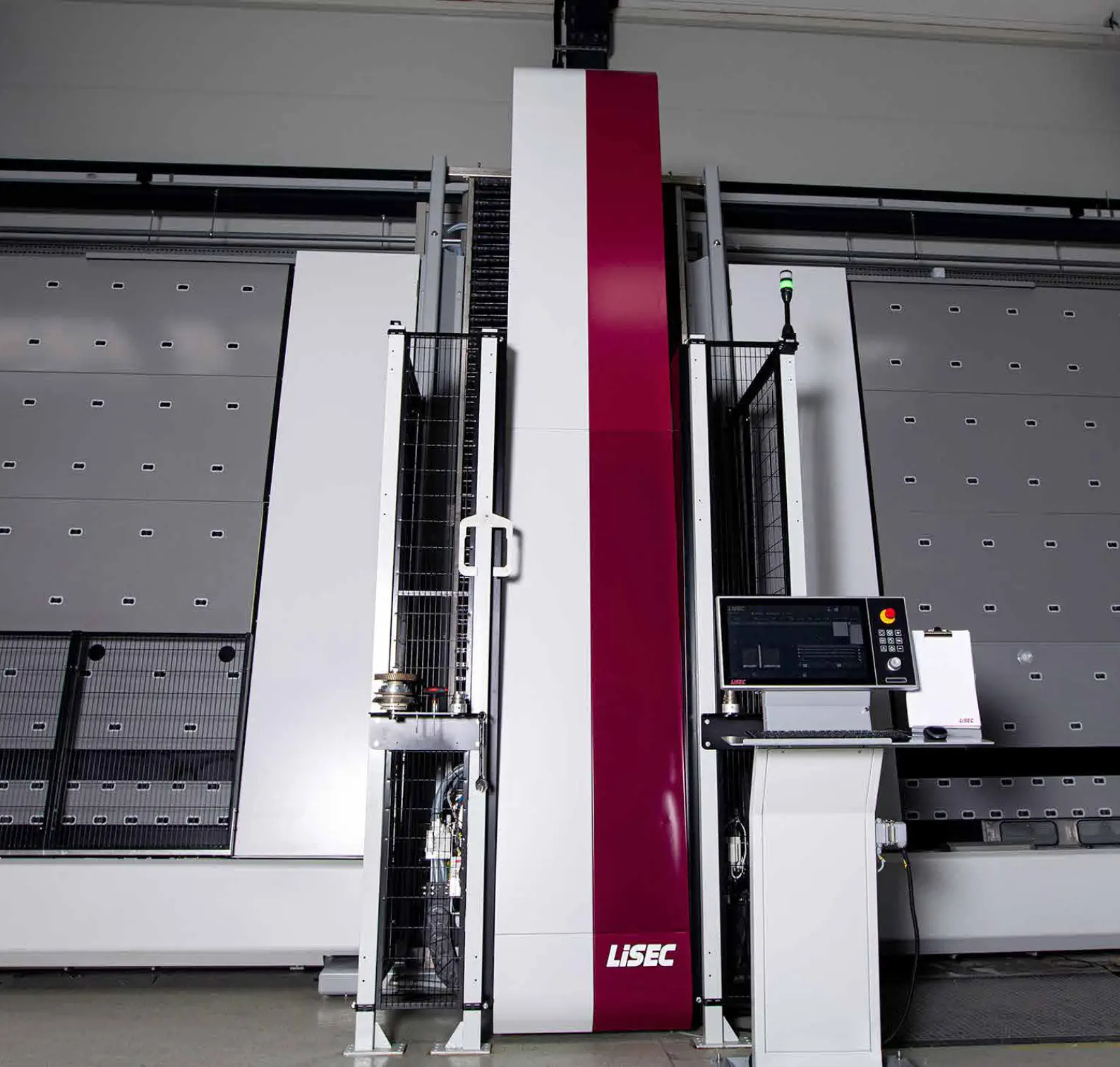

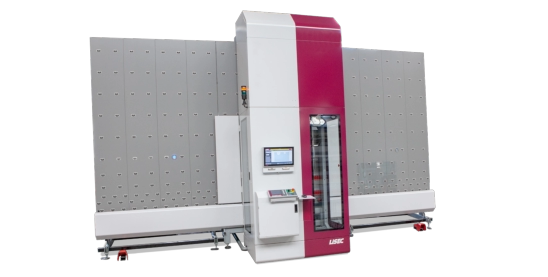

MRX

-B

The MRX fully automatic milling and drilling machine delivers convincingly good performance and is easy to oper ate. Bore and counterbore holes are as efficient to manufacture as complex cor ners, edges and internal cutaw ays. The MRX-B series convinces with its optional water jet cutter, w hich makes the manufacture of cutaways a gre at deal easier. The vacuum belt system for securing glass facilitates flexible and continuous production. The drilling and milling centre operates in a fully automatic manner and assists data links to e xternal systems. Graphic input of the processing program and automatic selection of all parameters in the drilling and milling processes make operation simple and e rror-free.

Machine configura

tions for every r

equirement

The MRX-B can be configured to suit individual customer requirements. The Linea r-8 tool hangers make operation as easy as it possibly can be , while the Roto-10 changer increa ses the process speed. The highest level of process spee d is achieved with a combination of the Roto-10 magazine and the wate r jet cutting head. Modular expansion of the machine length, the choice of two machine heights and a free choice of running direction provide great scope for individual customer configurations.

Vertical CNC milling and drilling centre with wa ter jet technology

Watch on Youtube

MRX

-B

Cycle times and scope of processing The MRX-B is the ideal solution for all drilling, counter-sinking, milling and cutting processes. All machine configurations facilitate flexible, fast and high-quality processing. The use of a water jet together w ith the Roto-10 magazine at both processing spindles optimises cycle times when different tools on a single glass shee t are used.

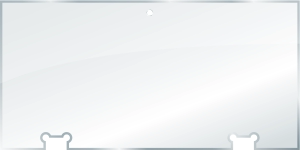

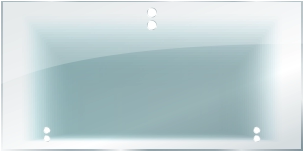

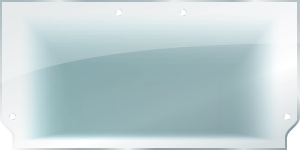

Shower Doo

r

Dimensions: 800 x 1,800 mm 2 Mickey Mouse edge cutouts 1 h andle drilling Cycle time for the entire pr ocessing: Wa ter jet < 90 seconds KGNW Grinding < 150 seconds KGN

Swing Door

Dimensions: 1,000 x 2,000 mm 2 pieces PT fittings 2 h andle drilling Cycle time for the entire pr ocessing: 90 second s KGNW

Single-action Doo

r

Dimensions: 800 x 2,000 mm 6 drillings, all countersink drilling Cycle time for the entire pr ocessing: 360 seconds

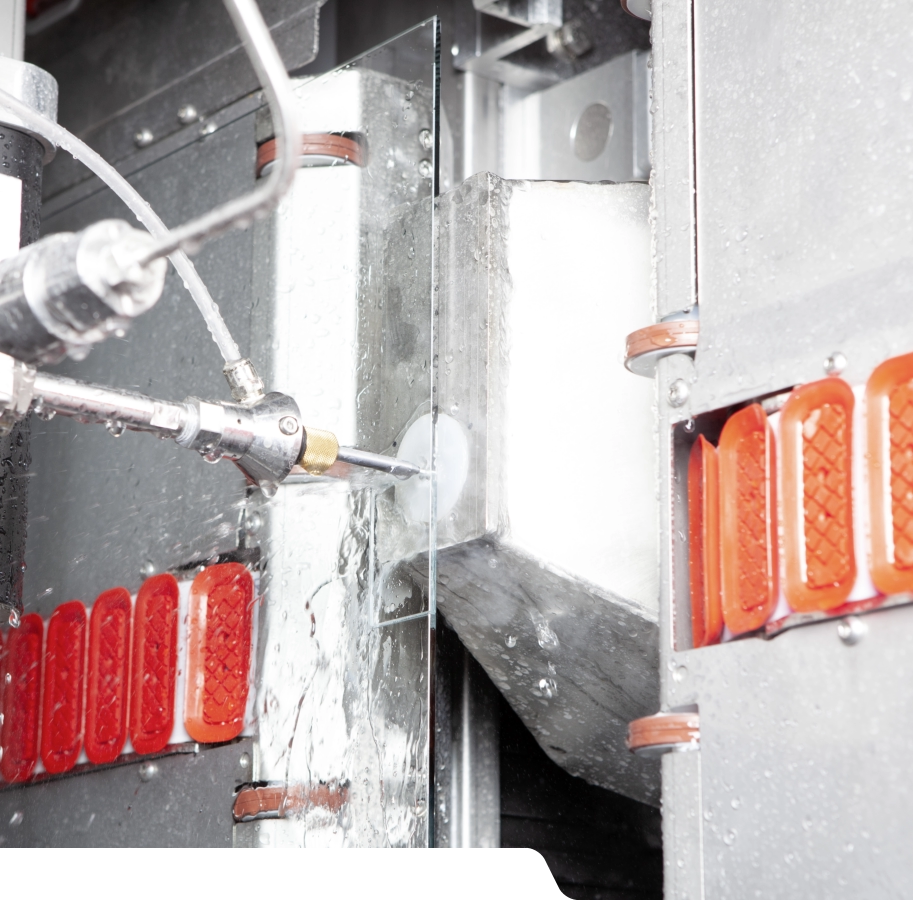

State-of-the-art machine technology

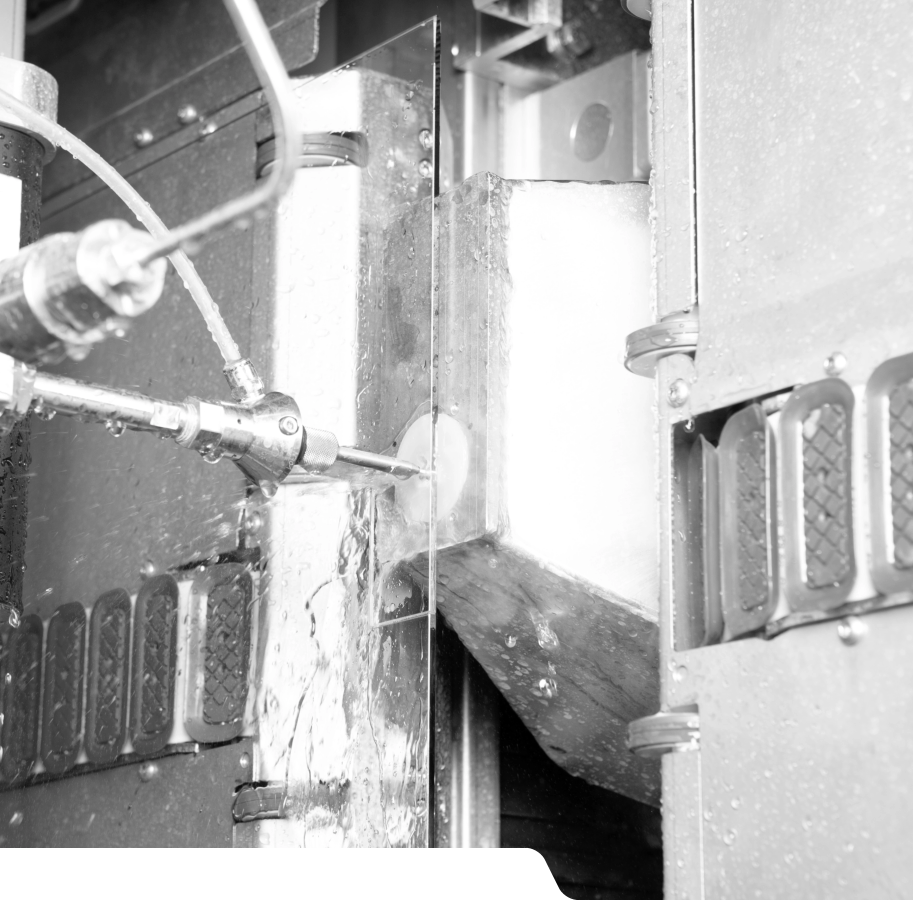

The new MRX-B meets all the requir ements of modern machine technology to ensure a long machine life and highest precision. Due to the small distance between the drilling tool and the water jet nozzle, sur fa ce cutouts no longer require „puncturing“. The smallest available drill pierce s the glass and the water jet cutte r continues directly from the drill hole. The water jet - and the abrasive sand - is always caught by the je t destroyer. This significantly reduces the pollution within the machine. In addition, all relevant moveme nts are of course servo drive controlled. Solid ball screws for the liing and drilling a xe s allow very high precision and the fully automatic centra l lubrication of all essential machine components ensure the uninterrupte d operation of the machine. A network connection and remote maintenance possibility via remote access is of course included in the sta ndard at LiSEC.

Fast and flexible processing

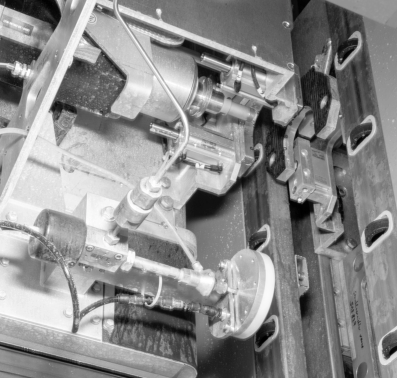

Id eal combination of water jet and diamond tools Roto-10 tool magazine mounted directly on the spindle for predictive tool changing Drilling, (deep) countersinking, milling and grinding finished in one single cycle Batch size 1 facilitates proble m- free processing of right angles and shapes

Fast glass handling

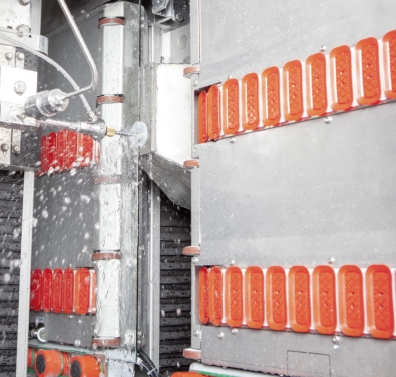

Dynamic vacuum system, without tooling time and also for special shapes Different glass sizes, shapes and thicknesses without changes Loading of n ext sh eet during the processing operation Problem-free combination with upstream or downstrea m module s (e.g. washing machine)

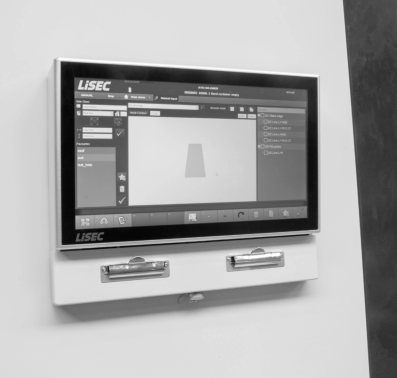

Fast and simple operat

ion

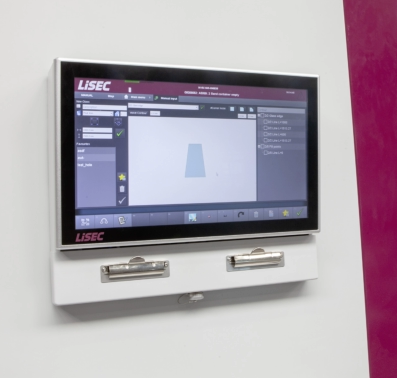

Graphical input of all processing operations and automatic selection of all machining paramete rs Autonomous setting of all auxiliary h oles and puncture operations Program generation at the machine via network or USB

2

1

3

HIGHLIGHTS MRX-B

1

2

3

Options

1200-liter tank A 1200-liter reservoir for cleaned water ca n be offered, if required. Connection to third-party machines The WRA also offers optimized water tr eatment for machines from other suppliers

Highlights

Saves water The sophisticated system supplies the maximum amount of reusable water Increases production, re duces maintenance The time consuming cleaning of tanks and machines is kept to a minim um Plug & play No need for individual control of the WRA th anks to the control system of the connecte d CN C machine

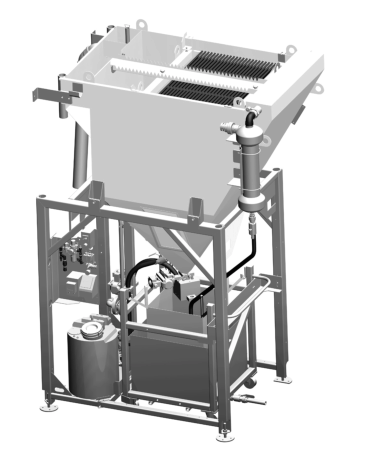

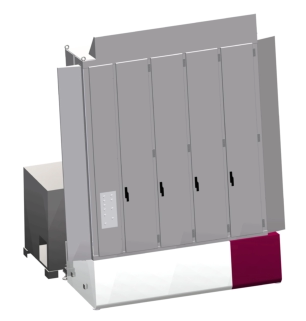

WRA-B

1

500

Water Treatment System

L (mm) B (mm) H (mm)

Power consumption (kW)

Operating air pressure (bar)

Air consumption (m³/d)

Cleaning capacity max. (l/min)

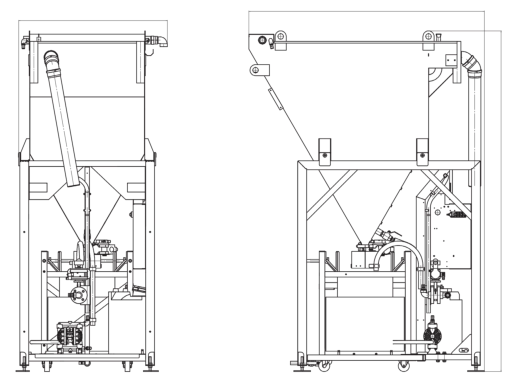

WRA-B1500 2,121 1,339 3,076 0.02 6 12 250

The WRA-B1500 water tr eatment system, which supplies your equipment with perfectly clean and re usable water, is the water saving solution for all kinds of processing machines. Optionally the wat er treatment system can be equipped with a 1200-Iiter reservoir, which supplies CNC machines w ith w ater through pumps and piping systems. The best possible way of separating dirt particles from water is to add flocculant and mix it with the dirty w ater, and to use a lamella package. The sludge that deposits is automatically drained to the big bag und erneath. An integrated li pump simultaneously pumps excess water back to the system. This sophisticated concept reduces the amount of waste water to a minimum. Full big bags can be easily removed and disposed using the integrated hea vy-li trolley. The WRA‘ s modular design allows you to r emain flexible. The system requires little space and has a low construction h eight. The corrosion-resistant, compact and solid stainless steel construction makes it a future-proof investment in the efficiency of your production.

Technical Data

WRA-B1500

Capacity

1.5 m 3

Weight

Overview washing machines

Line pas

s-through values

VHW-F

TCL

Tilt angle

6° 6°

Transport height

520 mm / 720 mm / 770 mm / special 520 mm / 720 mm

Maximum length

variable variable

Maximum height

2 m / 2.5 m / 2.9 m / 3.3 m2 m / 2.7 m

Minimum size

250 x 180 mm (2 m / 2.5 m) / 350 x 180 mm 300 x 150 mm

Glass thickness

2 - 21 mm / 2 - 60 mm 4 - 20 mm

Max. through-transport width

60 mm 20 mm

Maximum load

250 kg/m 150 kg/m

Transport speed

3 - 8 m/min / 3 - 12 m /min / 3-15 m/min 1 - 6 m/min

Special shapes per LiSEC shape catalogue

yes y es

Data connection LMS / Line Management no Glass transport system Rollers Roller s

Machine-specific data

VHW-F

TCL

Pre-washing station

yes / no y es / no

Variable brush speed

yes

no no

Pairs of brushes

2 / 3 / 4 2

Zone setting

automatic without

Options

Sh apes according to the LiSEC shape catalog Speed control for rolling brushes front/r ear Automatic coating detection 1000l tank and sand filte r Additional pair of b rushes for the main washing zone Additional h eating element for the integrated h eating tank Brushes with denser bristles Wa ter temperature and conductance monitoring

Highlights

No scratching of glass sheets or coating (infinitely adjustable brushes) Faster and more efficie nt drying process More compact construction Saving up to 50% energy with h ot water generator

Technical Data

TCL-A20 TCL-A27

Max. processing height

2,000 mm 2,700 mm

Construction

Open at the top Closed at the top

Glass thickness

4 - 20 mm

Minimum size

320 x 50 mm

Angle of inclination

6°

Transport height

520 mm (+/- 20 mm) / 72 0 mm (+/- 20 mm)

Transport speed

1-5 m/min 1-6 m /min

Number of brushes

4 brushe s

Our newly developed washing and drying plant offers our customer s the possibility to sta rt with a washing machine for basic requireme nts and to gradually (even over y ears) adjust and upgrade this machine to meet their growing needs. But not only its flexible upgr adability, also the extreme revision of the functional and technical facilities of this plant offer significant benefits.

Automatic washing and drying pl ant for flat glass

VHW

-F

Technical Data

VHW-F

Glass height

2 m / 2.5 m / 2.9 m / 3.3 m

Glass thickness

2 - 21 mm / 2 - 60 mm

Minimum size

250 x 180 mm (2 m / 2.5 m) / 350 x 180 m m

Heating unit for the washer

Integrated hot water genera tion

Number of brushes

4 brushes (VHW-F/4), 6 b rushes (VHW-F/V6), 8 brushes (VHW-F/V8)

Transport speed

3 - 8 m/min (4 brushes), 3 - 12 m/min (6 brushes), 3 - 15 m/min (8 brushes)

Maximum load

250 kg/lm

TCL

Optimised for integration in LiSEC lin es

Options

AutoStart system for power saving Pre-wash zone with high-pres- sure pump and filter So brushe s at front for Low-E glass she ets

TCL is the perfect choice if you wish to incorporate a washing machine from th e topCLEAR range in a LiSEC processing line. TCL is ideally suited for use on LiSEC lines, in terms of transport height and angle of inclination as well as of machine design. TCL impresses with its extremely robust design and its very good washing result, especially in the grinding area. The standard version can wash glass thickne sses of up to 20 mm.

Highlights

Perfect integration in LiSEC lines Rollers with non-slip coupling as standard Reinfor ced machine base made of stainless steel Doors at front and back / Makrolon viewing guard One water pump pe r pair of brushes Sensor for water level and shut- dow n High-pressur e stainless steel centrifugal pumps

SER

V

ICE

Machines and systems for flat glass pr ocessing are in use for many years, sometimes even for decades. Ongoing maintenance and optimisation are essential to keep performa nce, efficiency and availability at a consistently high level and to ensur e high-quality glass products.

Service P

roducts

Online Support Ho tline Service / Maintenance Training LONGLiFE Spare parts Installation Repairs

Services

From machine installations to modernization of existing systems, we offer a wide range of services, and stay on your side as a compe tent and reliable partner th roughout the entire life cycle of your systems. Whether you need a customized training program, detailed machine inspections, online support, spare parts or upgrades – the LiSEC service team will take care of it for you.

We offer you worldwide service and the fastest possible supply of spare parts.

Facts & figure

s:

More 140 service engineers worldwide Global network with local partners all over the world Spare part deliveries worldwide within shortest time Super-fast problem solving via remote service Compentent technical consulting

Online Support

Telephone support with direct data connection to your LiSEC machinery for the immediate and targeted diagnosis and correction of faults and errors.

Machinery

Sunday 10:00 p.m. – Friday 09:00 p.m. (CET) Phone: +43-7477 405-5701 E-Mail: tbe.service@lisec.com Emergency contact for urgent issues outside our working h ours: Saturday 6:00 a.m. – 10:00 p.m. (CET) Sunday 6:00 a.m. – 10:00 p.m. (CET) Phone: +43-7477 405-5701

Software

Monday 07:45 a.m. – Friday 09:00 p.m. (CET) Phone: +43-7477 405-5702 E-Mail: support@lisec.com Emergency contact for urgent issues outside our working h ours: Phone: +43-7477 405-5702

Watch on Youtube

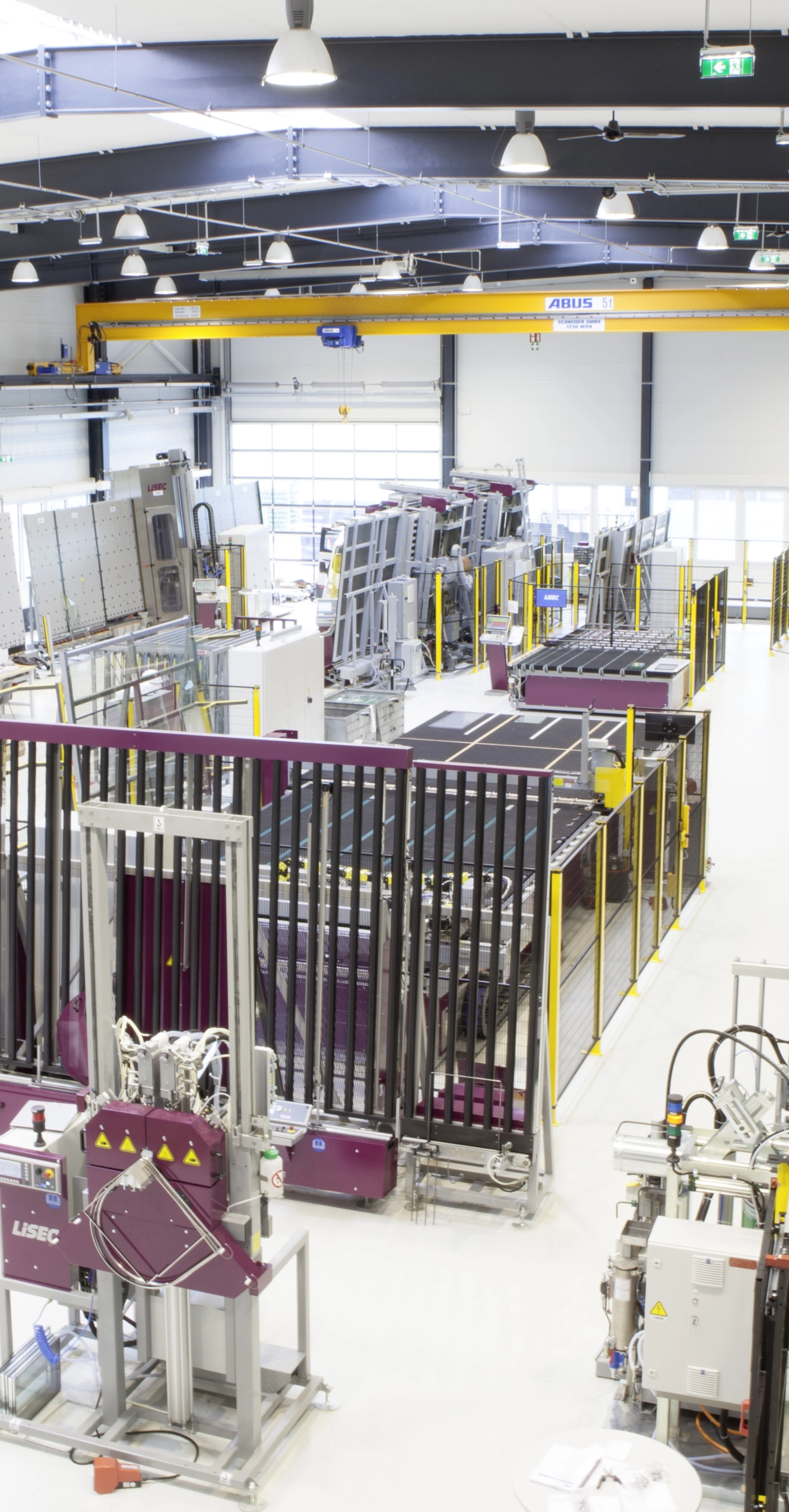

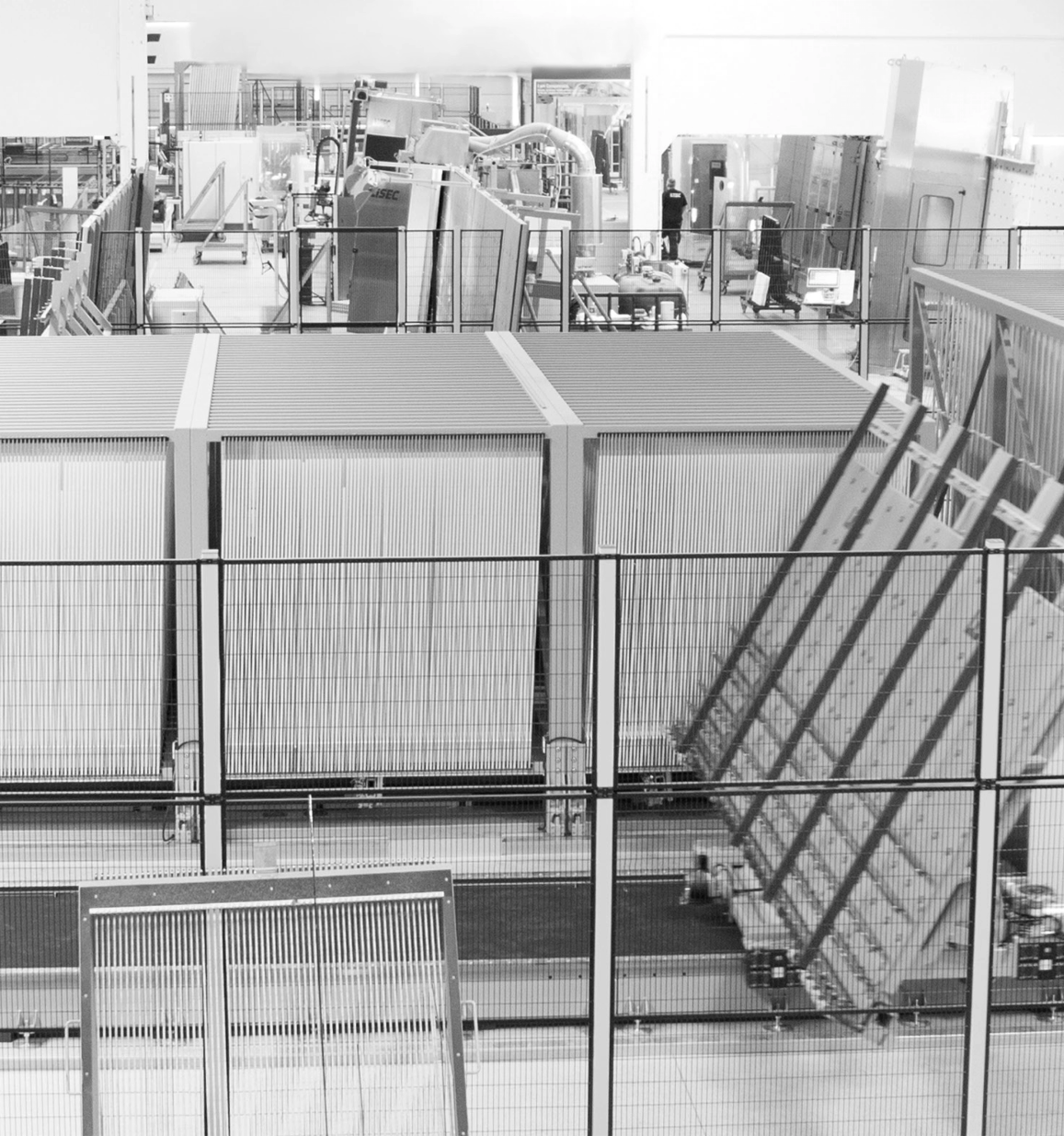

COMPETENCE CENTE

R

Facts and figure

s:

Opene d October 2015 Latest LiSEC technologies 70 employee s Investment: 9 million € since 2015 15 million Euros turnover Approx. 100 customer visits per year Glass stor age with 96 rack positions 2 insulating glass lines 3 cutting lines for float, laminated and special glass Glass processing line „SplitFin“ 1 edge processing machine KSD 1 laminated glass line 1 AEROFLAT tempering furnace Automatic sorting/shuttle logistics Planned ahead maintenance sched ule Automatic production planning and machine add ressing

Competence Center for rese arch, production and training in th e field of flat glass processing

GLASTECH

The new LiSEC Competence Center for re search, production and training in the field of flat glass processing was opened in Hausmening at the end of 2015. It aligns completely with the LiSEC claim „all. in.one:solutions“. The Competence Center „GLASTECH“ makes LiSEC the only machine manufacturer on the market who profitably processes flat glass. This ope rator know-how allows LiSEC to share and therefore fully understand their custome rs‘ prob lems and challenges.

The „GLASTECH“, a LiSEC investment of approximately nine million Euros, accommodates the latest LiSEC techno- logies for each step of glass processing – from cutting and edge processing to a sophisticated sheet logistics system to the production of insulating glass units and laminated safety glass including tempering. In the GLASTECH, flat glass is processed under r eal life production conditions. The state-of-the -art plants and soware applications are also used for research, testing and training.
